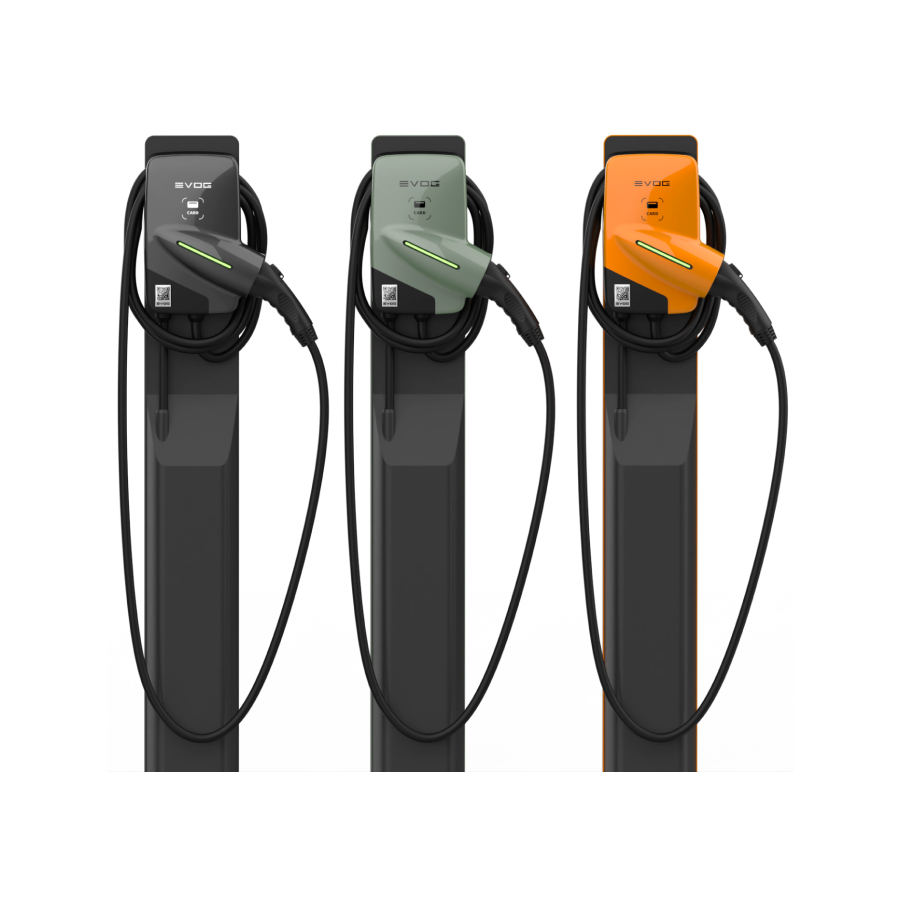

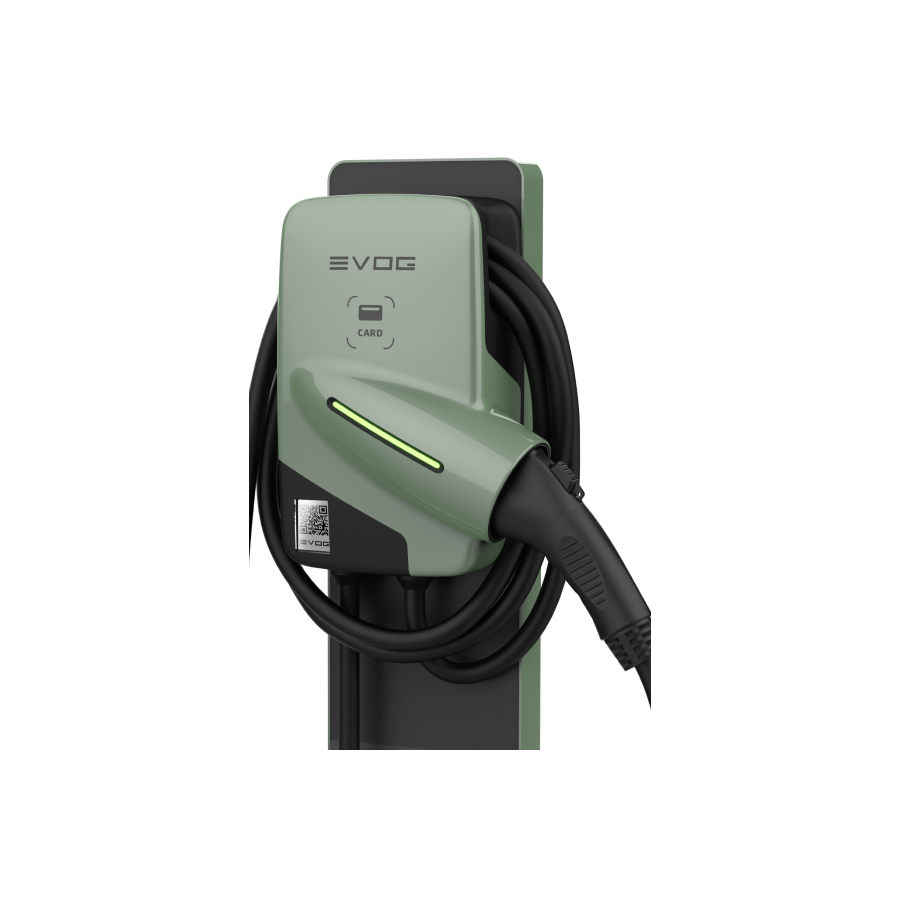

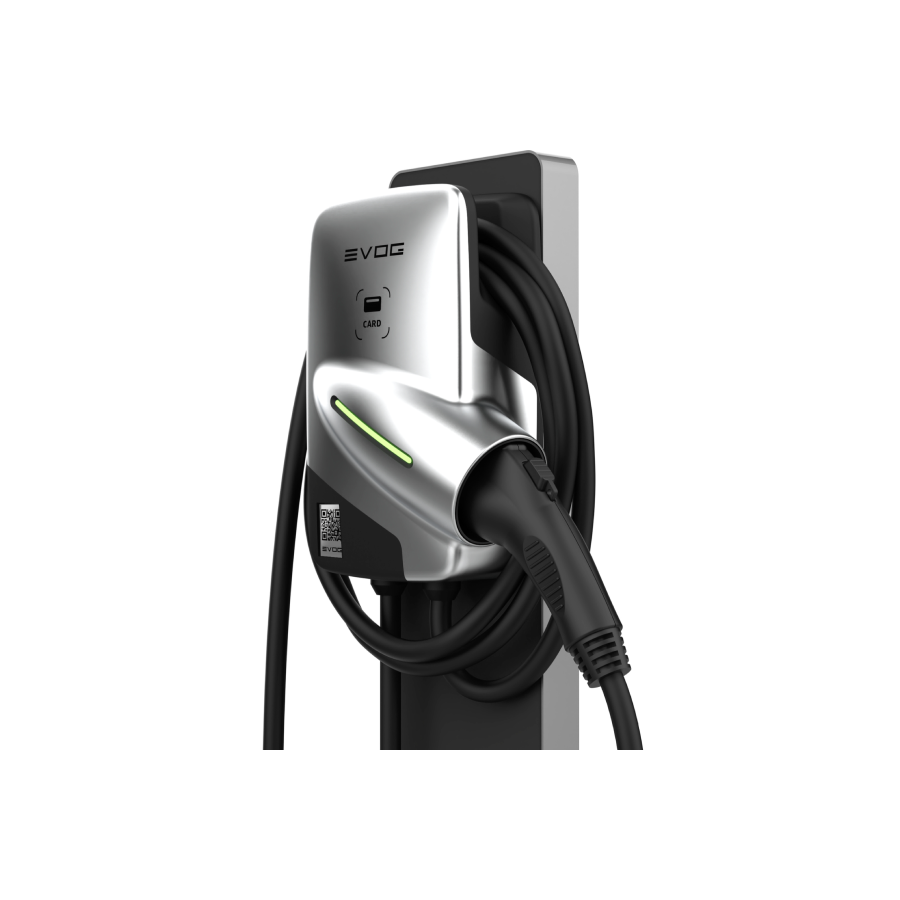

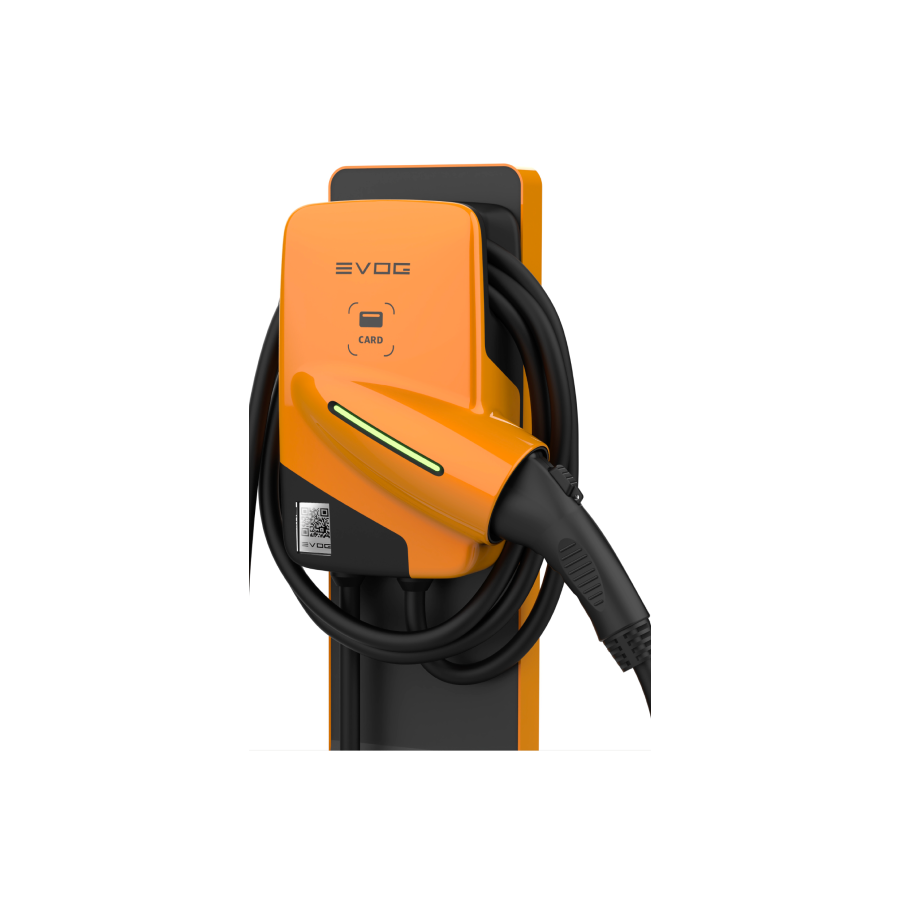

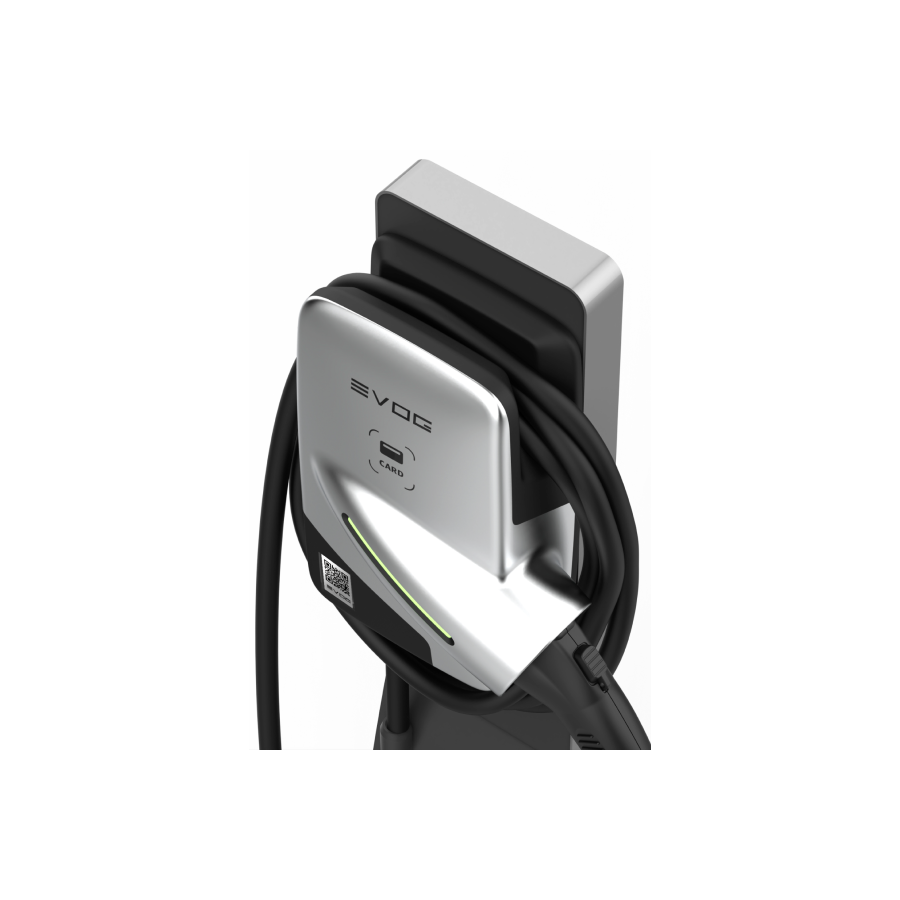

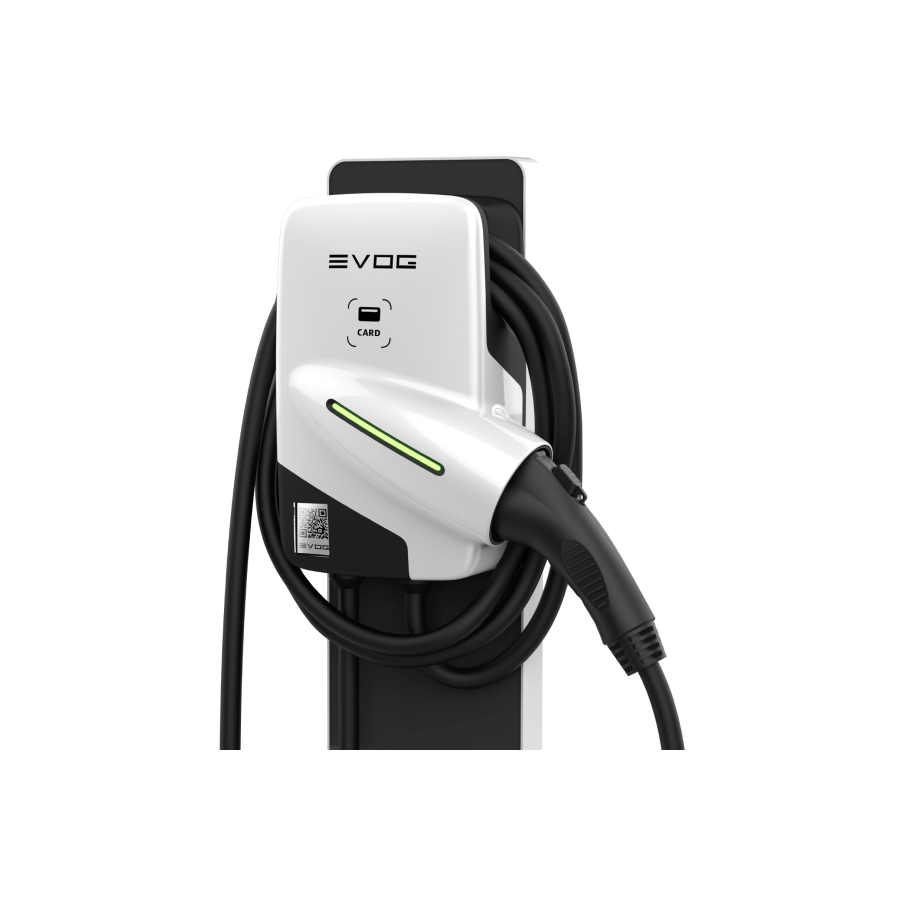

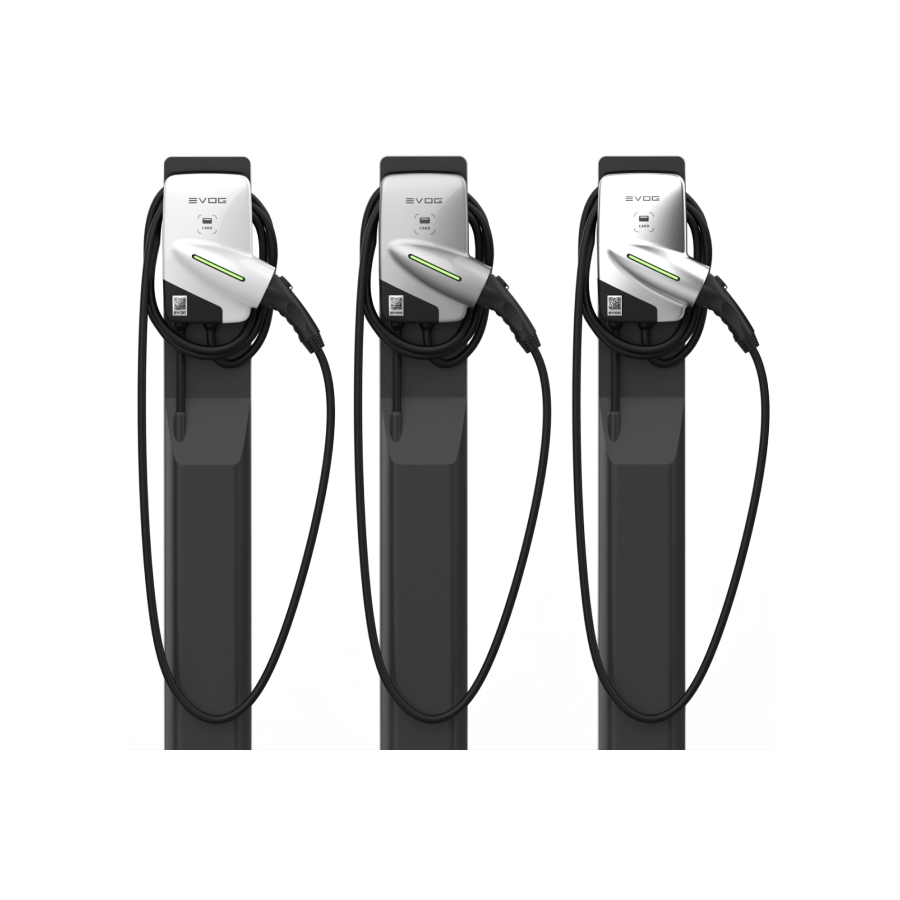

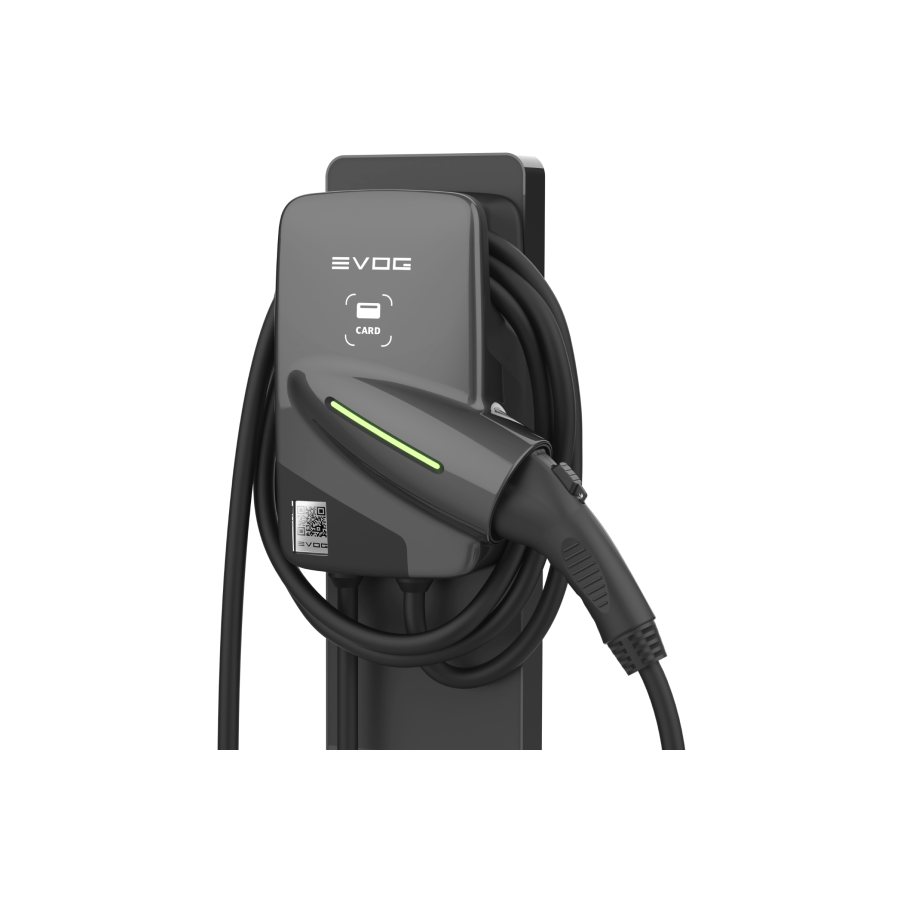

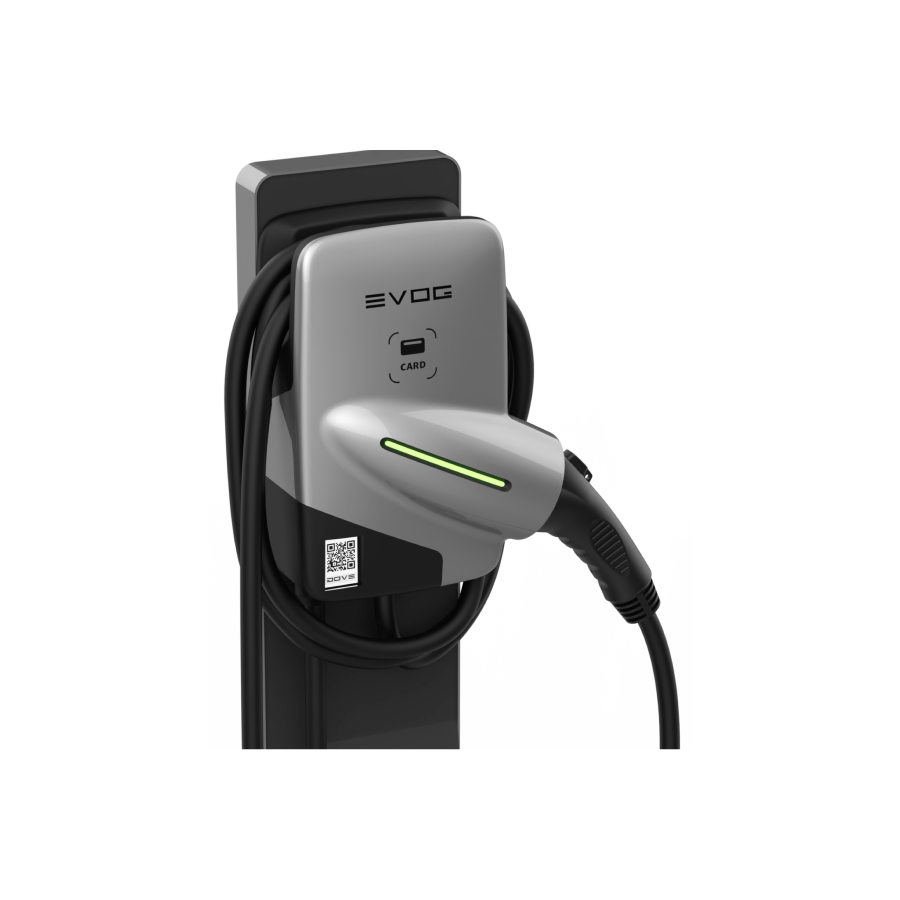

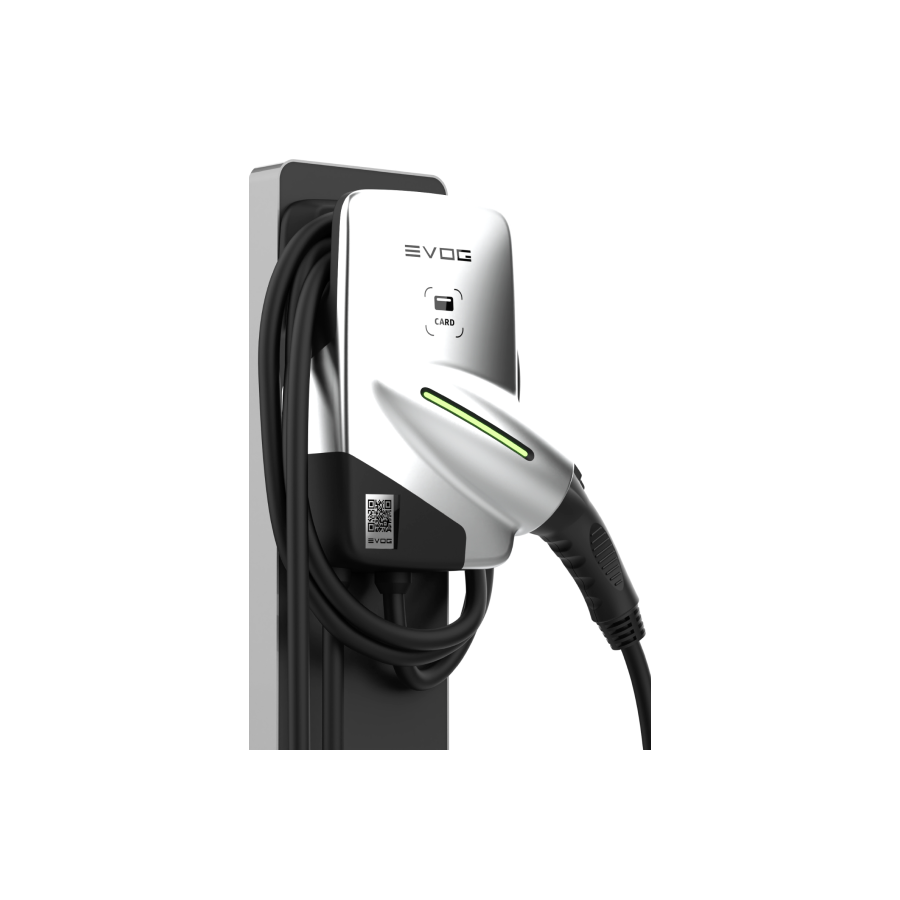

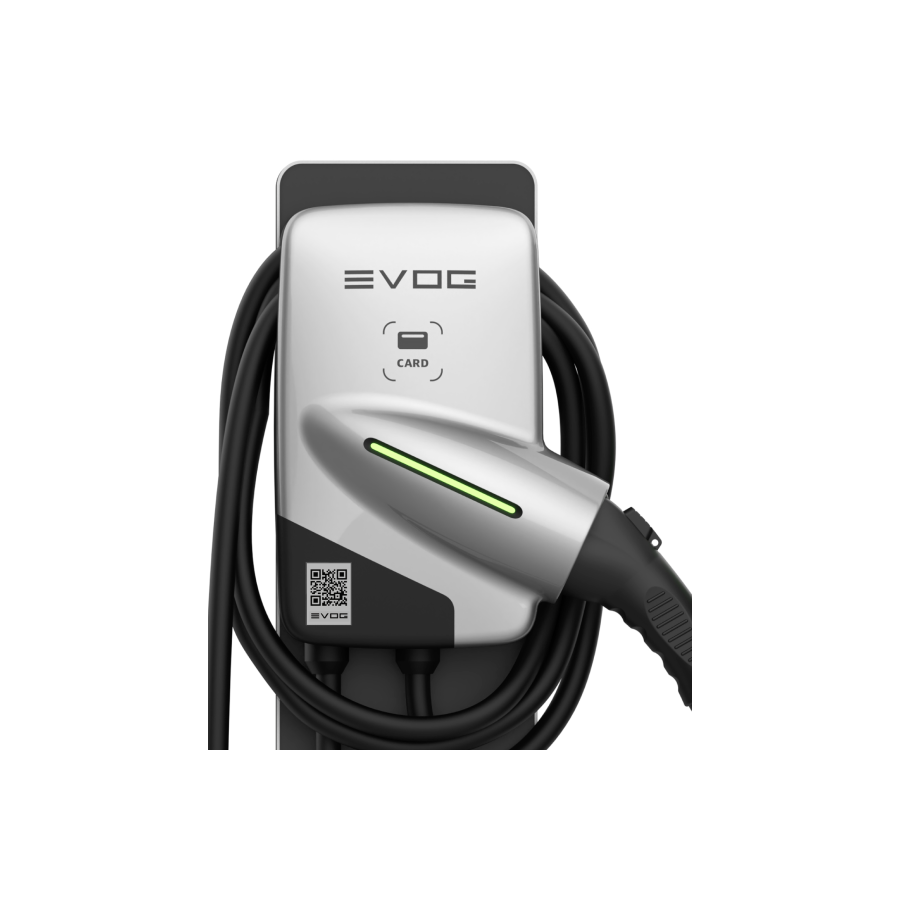

EVOG AC Charger

7kW / 11kW AC Charging Models


Fire Safety Certification Completed


First in Korea to Achieve Grade 0.5 Certification


Full V2G (Vehicle-to-Grid) Compatibility

Specifications

Direct Development and Production with Derivative Model Certification Available



Integrated Firmware Installation, Customized Supply for Individual Charging Platform Operators



Reduced Maintenance Costs from Product Defects



Defect Rate: Less than 1% (Company) vs. Industry Average over 3%



Patent Holder for Charging Station with Metered Socket



Patent Registration Number: 10-1459369

Key Features

Compliant with Global IEC & Korean KC EV Standards


Implemented KC 61851-1, KC 61851-22, KC62196-1, KC 62196-2 Charging Standards


Efficient Design for Easy Operation and Management


Automatic Charging Cut-off with Temperature Detection in Connector and Charger


Dual Channel Option Enables Efficient Installation and Operation (Simultaneous 2-Car Charging)


Automatic Output Control Based on EV Charging Status for Dual Channel


RFID Card Support: Ministry of Environment Green Card, Membership Cards, T-money, Cashbee


Credit Card and Samsung Pay Support (Optional)


OCPP1.6 Core Client Support (Optional)


High Reliability - No Additional Dust/Water Protection Required for Outdoor Installation


Supports Wall-mount and Stand-alone Installation

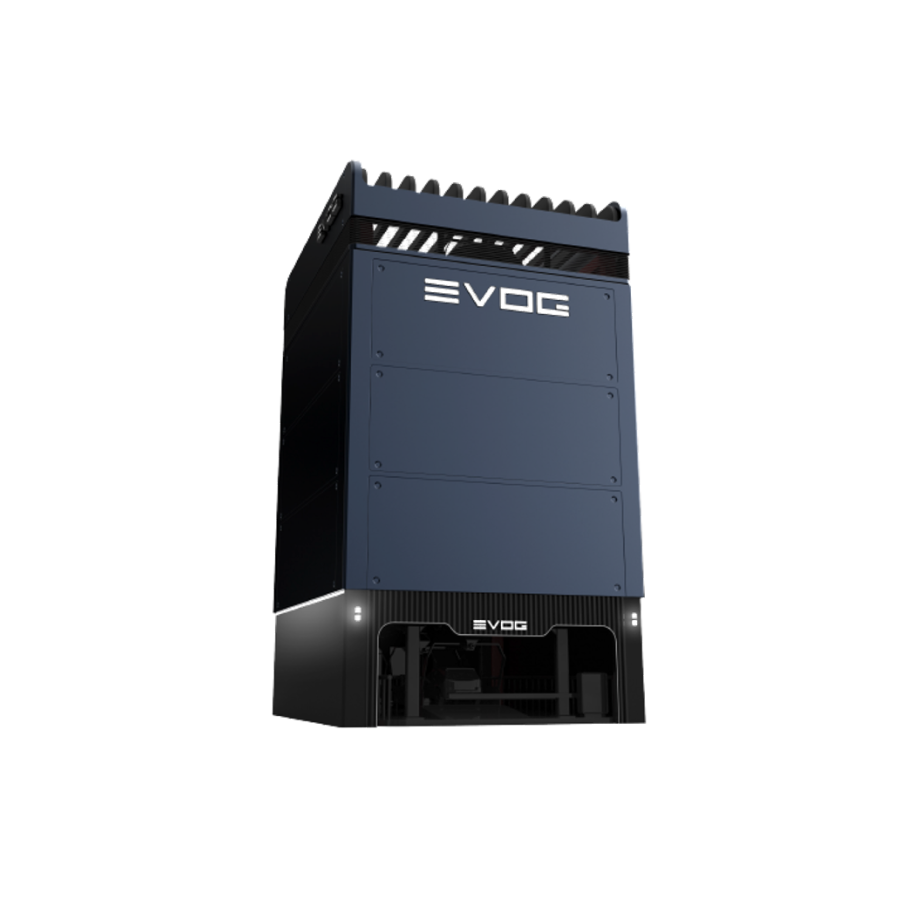

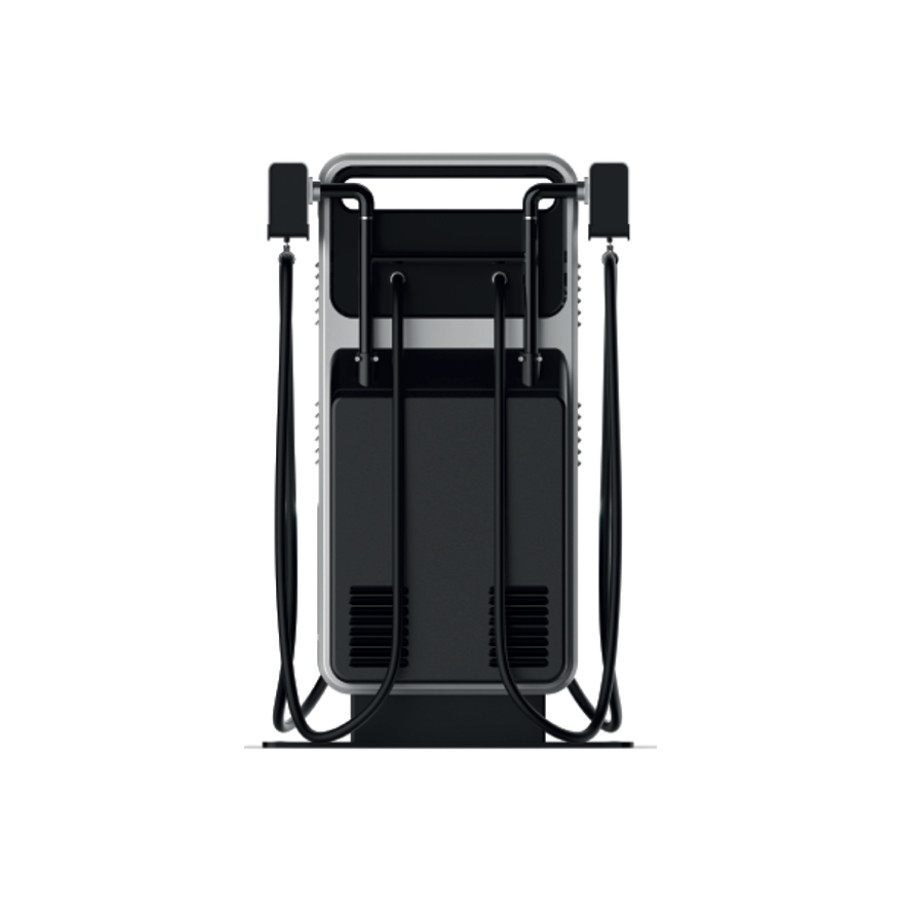

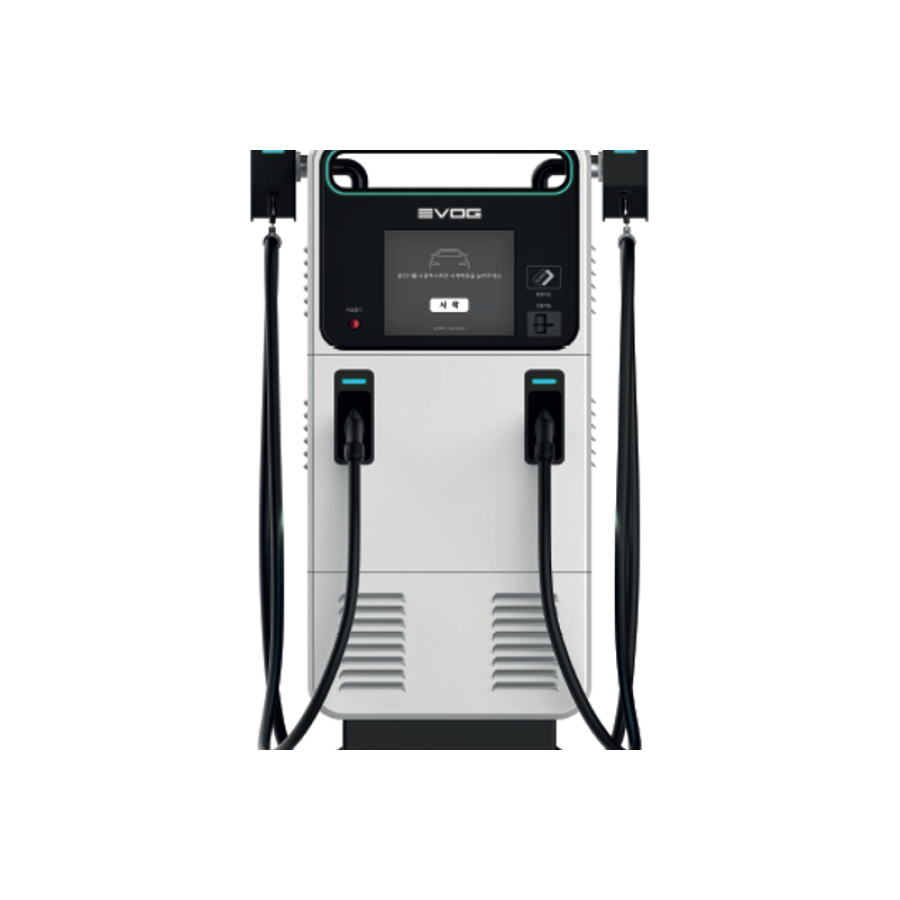

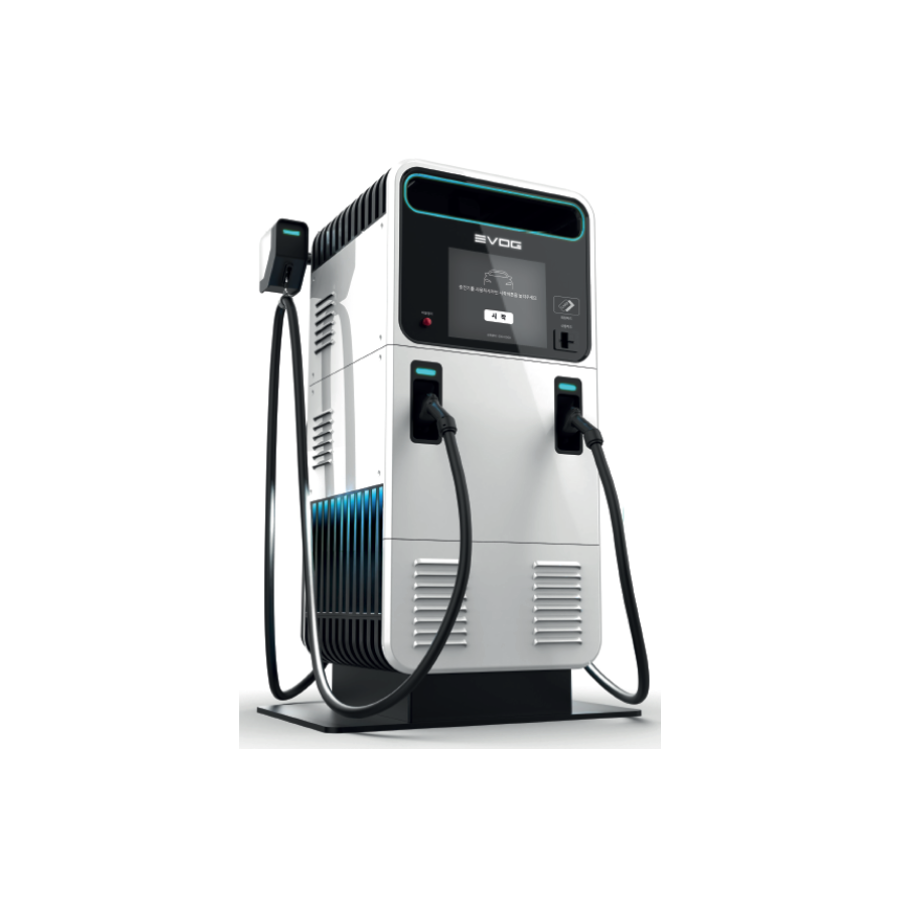

EVOG DC Charger

Efficient Design for Easy Operation and Management


Compliant with Global IEC & Korean KC EV Standards


Automatic Charging Cut-off with Internal Temperature Detection


No Additional Dust/Water Protection Required for Outdoor Installation

Specification

Input Spec: AC 380V 60Hz, Three phase

Output Spec:

DC 500V~1000V up to 50kW / 100kW / 200kW Stand Type

Standard:

KC 61851-1, KC 61851-23, KC 62196-3, KC 62893-4-1

Dimensions (H x W x D): 1900 x 1000 x 800

Charging Protocols & Connectors:

CCS Type1, DIN 70121, ISO 15118

Safety: Overcurrent, Overvoltage, Overtemp

Communication: OCPP 1.6, RFID System, LTE Modem

Display 15.6'' Touchscreen

Key Features

Compliant with Global IEC & Korean KC EV Standards

Implemented KC 61851-1, KC 61851-22, KC62196-1, KC 62196-2 Charging Standards

Efficient Design for Easy Operation and Management

Automatic Charging Cut-off with Temperature Detection in Connector and Charger

Efficient Installation and Operation with Dual Channel Option (Simultaneous 2-Car Charging)

RFID Card Support: Ministry of Environment Green Card, Membership Cards, T-money, Cashbee

Credit Card and Samsung Pay Support (Optional)

OCPP1.6 Core Client Support (Optional)

High Reliability - No Additional Dust/Water Protection Required for Outdoor Installation

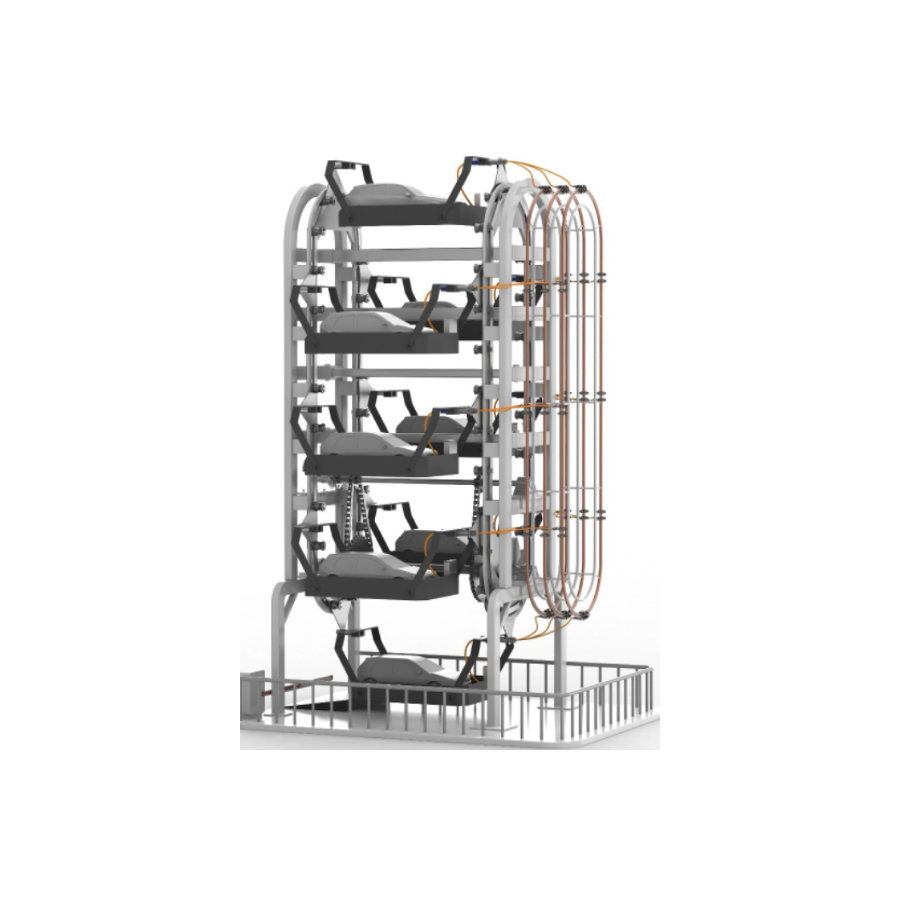

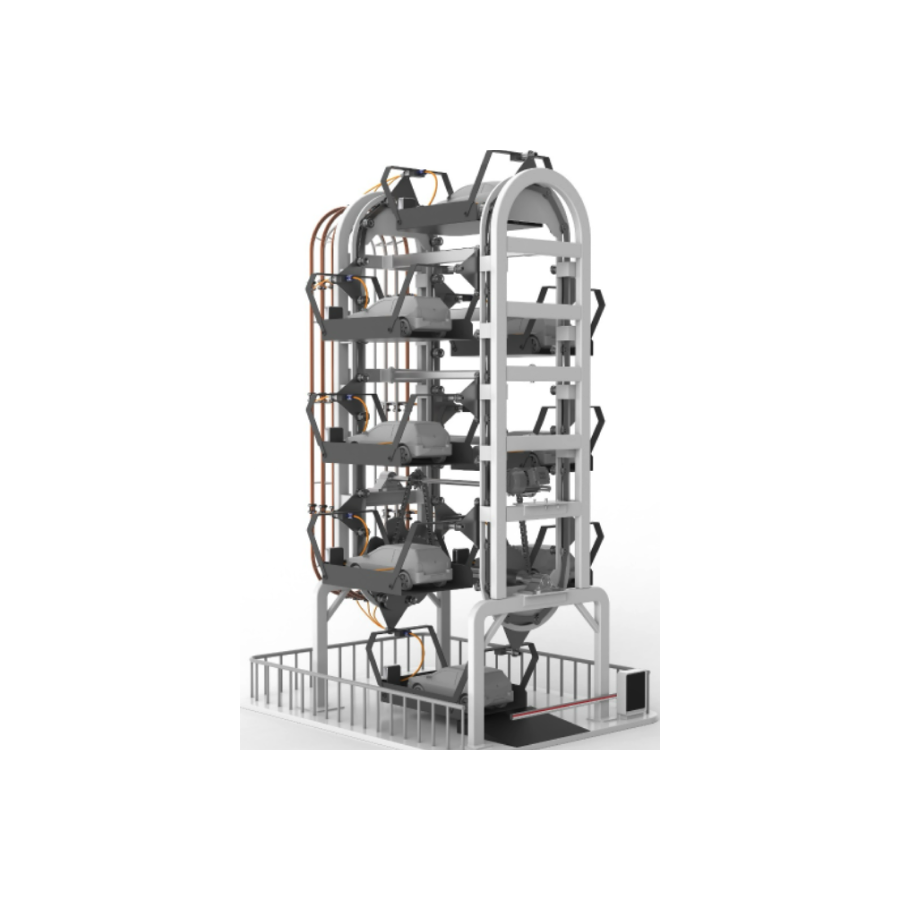

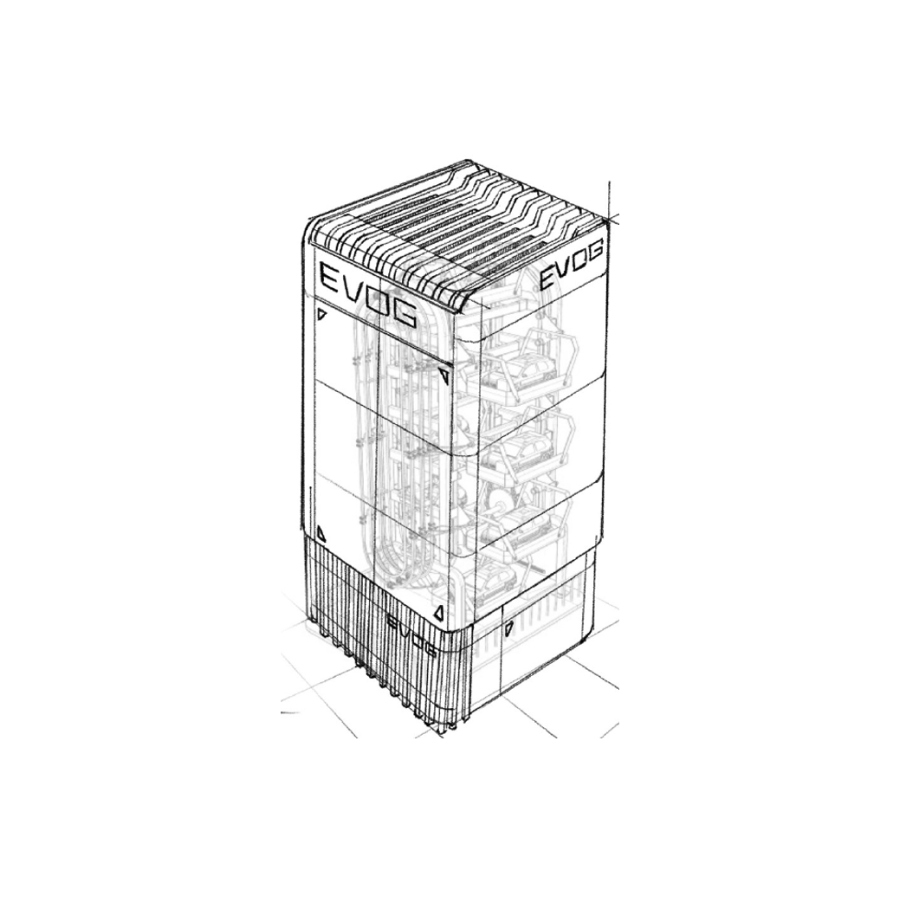

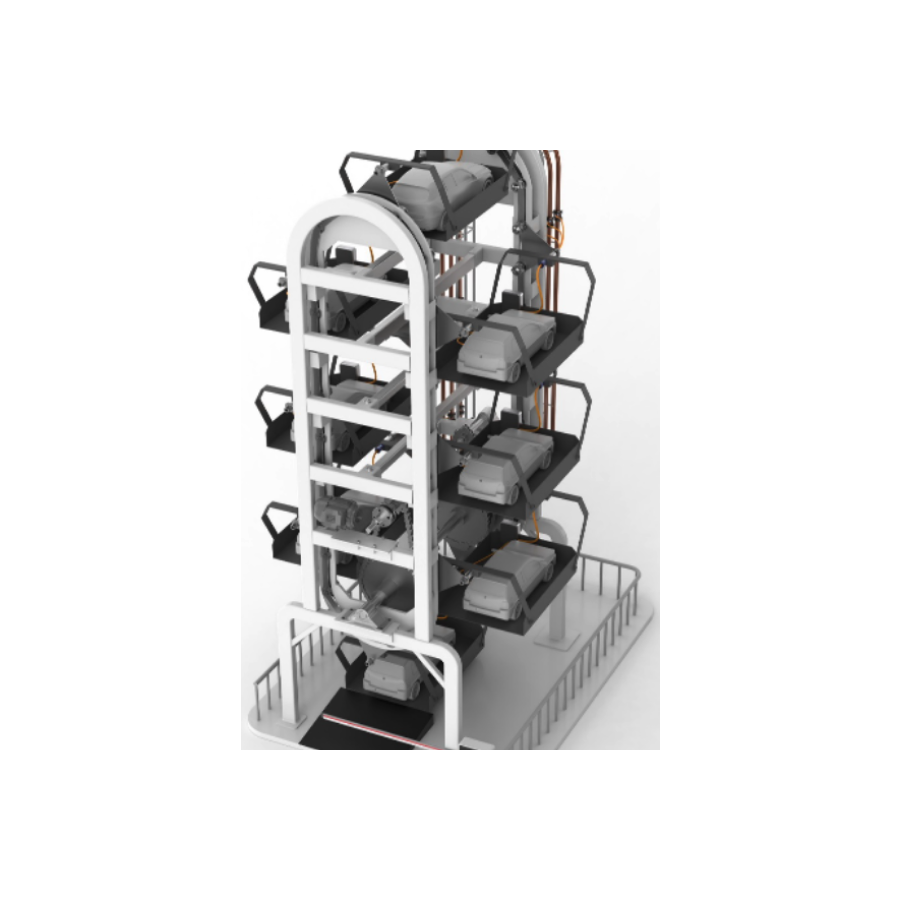

EVOG Charging Tower

Rail-type Parking Tower System with EV Charging Capability (Patent No. 10-2539510, International Patent Application Completed)


Comprehensive Structural Patent, Not Partial. Cannot Be Circumvented by Competitors


Resolves Parking Issues Due to EV Market Growth


Flexible Space Utilization (Triple Parking & Charging Capacity)


Available to All Platform Operators

Specification

40kW charger / pallete

40kW Parking Tower Charger Power Specifications

[Input]

Input Voltage 285~252Vac

Voltage system 3-Phase 4-Wire

Input Current: Less than 100A

Input frequency 60hz

Power factor 0.99

Harmonic current THDi=<5%

[Output]

Max Out Power 40kW

Output Voltage 50~1000Vdc

Output constant power range 300~1000Vdc

Max Out current 130A

Efficiency: 95% or Higher

Key Features

Uninterrupted High-Current Individual Supply via Multi-rotating Vertical Circulation Pallet System

Solves Both Charging Station & Parking Space Shortages Through Integrated Mechanical Parking

Customized Supply for Charging Operators with Integrated Parking Control & Billing Firmware

 Enhanced Space Efficiency Without Additional Excavation

Flexible Charging Space Allocation (Triple Parking & Charging Capacity)

Compatible with Both AC and DC Charging Models

Integrated Monitoring Management System

OCPP & V2G Connectivity

Certifications (Pending): KS C IEC 60060-1, KS C IEC 60359, KS C IEC 60664-1, KS C IEC 60736, KS C 9610-4-3 Electromagnetic Compatibility (EMC), KS C 9610-4-4, KS C IEC 61439-1,KS C 0501, KS R IEC 61851-1, KS C IEC 62893-3

EVOG Charging Tower Guide

Contact us

Submit
EVOG AC Charger

7kW / 11kW AC Charging Models


Fire Safety Certification Completed


First in Korea to Achieve Grade 0.5 Certification


Full V2G (Vehicle-to-Grid) Compatibility













































Specifications

Direct Development and Production with Derivative Model Certification Available



Integrated Firmware Installation, Customized Supply for Individual Charging Platform Operators



Reduced Maintenance Costs from Product Defects



Defect Rate: Less than 1% (Company) vs. Industry Average over 3%



Patent Holder for Charging Station with Metered Socket



Patent Registration Number: 10-1459369





Key Features

Compliant with Global IEC & Korean KC EV Standards

Implemented KC 61851-1, KC 61851-22, KC62196-1, KC 62196-2 Charging Standards

Efficient Design for Easy Operation and Management

Automatic Charging Cut-off with Temperature Detection in Connector and Charger

Dual Channel Option Enables Efficient Installation and Operation (Simultaneous 2-Car Charging)

Automatic Output Control Based on EV Charging Status for Dual Channel

RFID Card Support: Ministry of Environment Green Card, Membership Cards, T-money, Cashbee

Credit Card and Samsung Pay Support (Optional)

OCPP1.6 Core Client Support (Optional)

High Reliability - No Additional Dust/Water Protection Required for Outdoor Installation

Supports Wall-mount and Stand-alone Installation


EVOG DC Charger

Efficient Design for Easy Operation and Management


Compliant with Global IEC & Korean KC EV Standards


Automatic Charging Cut-off with Internal Temperature Detection


No Additional Dust/Water Protection Required for Outdoor Installation













Specification

Input Spec: AC 380V 60Hz, Three phase

Output Spec: DC 500V~1000V up to 50kW / 100kW / 200kW Stand Type

Standard: KC 61851-1, KC 61851-23, KC 62196-3, KC 62893-4-1

Dimensions (H x W x D): 1900 x 1000 x 800

Charging Protocols & Connectors: CCS Type1, DIN 70121, ISO 15118

Safety: Overcurrent, Overvoltage, Overtemp

Communication: OCPP 1.6, RFID System, LTE Modem

Display 15.6'' Touchscreen


Key Features

Compliant with Global IEC & Korean KC EV Standards

Implemented KC 61851-1, KC 61851-22, KC62196-1, KC 62196-2 Charging Standards

Efficient Design for Easy Operation and Management

Automatic Charging Cut-off with Temperature Detection in Connector and Charger

Efficient Installation and Operation with Dual Channel Option (Simultaneous 2-Car Charging)

RFID Card Support: Ministry of Environment Green Card, Membership Cards, T-money, Cashbee

Credit Card and Samsung Pay Support (Optional)

OCPP1.6 Core Client Support (Optional)

High Reliability - No Additional Dust/Water Protection Required for Outdoor Installation


EVOG Charging Tower

Rail-type Parking Tower System with EV Charging Capability (Patent No. 10-2539510)


Flexible Space Utilization (Triple Parking & Charging Capacity)


Compatible with All Platform Operators





















Specification

40kW charger / pallete

40kW Parking Tower Charger Power Specifications

[Input]

Input Voltage 285~252Vac

Voltage System: 3-Phase 4-Wire

Input Current: Less than 100A

Input frequency 60hz

Power factor 0.99

Harmonic current THDi=<5%

[Output]

Max Out Power 40kW

Output Voltage 50~1000Vdc

Output constant power range 300~1000Vdc

Max Out current 130A

Efficiency: 95% or Higher

Key Features

Uninterrupted High-Current Individual Supply via Multi-rotating Vertical Circulation Pallet System

Solves Both Charging Station & Parking Space Shortages Through Integrated Mechanical Parking

Customized Supply for Charging Operators with Integrated Parking Control & Billing Firmware

 Enhanced Space Efficiency Without Additional Excavation

Flexible Charging Space Allocation (Triple Parking & Charging Capacity)

Compatible with Both AC and DC Charging Models

Integrated Monitoring Management System

OCPP & V2G Connectivity

Certifications (Pending): KS C IEC 60060-1, KS C IEC 60359, KS C IEC 60664-1, KS C IEC 60736, KS C 9610-4-3 Electromagnetic Compatibility (EMC), KS C 9610-4-4, KS C IEC 61439-1,KS C 0501, KS R IEC 61851-1, KS C IEC 62893-3




EVOG  Charging Tower

Rail-type Parking Tower System with EV Charging Capability

(Patent No. 10-2539510, International Patent Application Completed)


Comprehensive Structural Patent, Not Partial - Cannot be Circumvented by Competitors


Resolves Parking Issues from EV Market Growth


Flexible Space Utilization (Triple Parking & Charging Capacity)


Compatible with All Platform Operators
